10/0.4KV Amorphous Alloy Dry-type Transformer

The three-phase Epoxy Resin Dry-Type Transformer produced by our company meets the performance indicators of various standards, and has the characteristics of low loss, compact structure, light weight, low noise, moisture-proof, high mechanical strength, flame retardant and so on. Strong overload capacity and low quality of partial discharge. It is suitable for power transmission and distribution systems, especially in heavy centers and places with special fire protection requirements. This series of products adopts international advanced manufacturing technology, the design drawings and technical documents are complete, correct and clear, the production equipment is advanced, the manufacturing process is stable, and the measurement means are complete, which provides a solid guarantee for the production of high-quality products. Performance indicators meet various standards

Envíeconsulta

Descripción

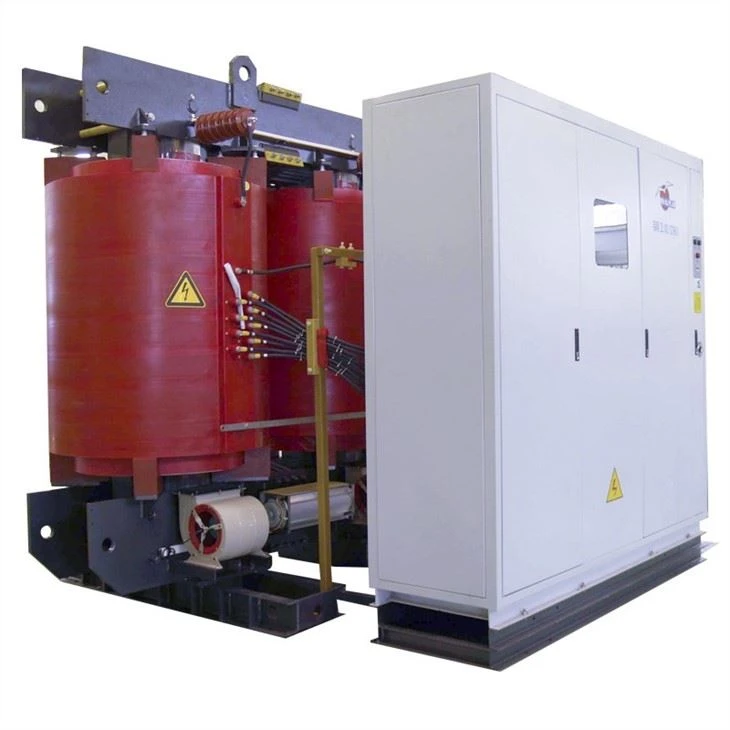

10/0.4KV amorphous alloy dry-type transformer

Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically.

The core is made of a high-permeable grain-orientated silicon sheet and cast with imported epoxy resin.

The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble, and has a low local discharge, high reliability, and long service life.

The high and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture, the clamps of the core are subjected to corrosion-resistant treatment and it may run under high temperature or other serious environments.

Advantage

1. Safe, not combustible, fireproof can be installed directly in the load center

2. Maintenance-free, easy installation, low economic operation cost

3. Good moisture resistance can operate normally under 100% humidity

4. Low loss, low noise, good insulation, small local discharge, no pollution, loss

5. Good heat dissipation, strong overload capacity, under the condition of air cooling, can overload 50%

6. Reliable operation, with perfect temperature protection control system, can ensure the safe operation of the transformer

7. Small volume, lightweight, stable structure, strong lightning shock resistance, high mechanical strength, temperature change resistance, anti-sudden short circuit ability

Protective shell and outgoing busbar: the protective shell further protects the transformer, and the protection grades are IP20, IP23, etc. The shell materials include aluminum alloy, cold-rolled steel plate, stainless steel, etc. for users to choose. Low voltage outgoing line adopts standard bus bar outgoing line, side outgoing line and top outgoing line, and special outgoing line mode can also be designed for users.

Thickened epoxy resin

Fireproof , explosion

proofmolsture-proothereby increasing the service life oftheproduct

Silicon-steel plate cores

The iron core made of

new cold-rolled

siliconsteel sheet can save energy reduce noiseresist corrosionand effectively reduceno-load055

Pure copper coil

Good conductivity . stable

operationenhanced overload

capacity , low line lossnoteasy to oxidize , prolonged

transforme

Cooling fan

Reduce the temperature rise

Increase theheat dissipation

area , increase the power sothat the transformer cancontinue tooperate efficient

The technical parameters of the form are for reference only.

THE USE OF CONDITIONS
1.Ambient air temperature: Maximum air temperature: +40ºC, Minimum air temperature:-15 ºC(Under a special process, up to-45 ºC)
2.Altitude: < 2500m(Under a special process, up to 4000m)
3.Installation environment inclination of installation lace<3, no obvious dirt and corrosive or flammable gas
4.Notes: If the operating conditions exceed the normal conditions, please contact our technical department

dry type transformer (2)

dry type transformer (3)

Dry-Type Transformer

dry-type

dry-type-transformer (2)

Dry-Type-Transformer (3)

CERTIFICATE

CQC

EXHIBITION

COMPANY OVERVIEW

FAQ

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
