HXGN-12 30.1KV Power Distribution Box

HXGN-12 box type fixed metal closed switchgear (referred to as ring network cabinet) is a complete set of AC high voltage electrical equipment with rated voltage from 12kV to 35kV and rated frequency of 50Hz. It is mainly used in three-phase AC ring network, terminal distribution network and industrial electrical equipment for receiving and distributing electric energy. It is also suitable for loading into box type substation

Envíeconsulta

Descripción

HXGN-12 30.1KV power distribution box

1. Summary

This product is our company introduced advanced technology and a new generation of high voltage electrical products in accordance with the requirements of domestic rural and urban network renovation ,designed and developed. The strict type test and long-term operation of the examination, the technical performance indicators all meet IEC298 and GB2906 standards. FLN36-12D type SF6 switchgear operating mechanism of main switch, ring network cabinet and components using the original SFG12/24(ABB), SC6(Schneider) or Our FLN36-12D. ABB's original HAD/US type SF6 circuit breaker or VD4-S type vacuum circuit breaker are also available. The operating mode is divided into manual and electric.

2. Environmental Conditions

Suitable Altitude: 1000m ~ 4000m
Suitable Temperature: -40℃ ~ +45℃
Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
Gradation of Earthquake Damage: ≤ Level 8

3.Technical parameter

Serial number	Project		units	FN12-10	FZN25-12
1	Rated voltage		kV	12
2	1min power frequency withstand voltage			Ground and interphase 42; Isolation fracture 48
3	Lightning impulse voltage (peak value)			Ground and interphase 75; Isolation fracture 85
4	Rated frequency		Hz	50
5	Rated current of main bus		A	630
6	load	Rated current		630
7	switch	Lifetime at rated current	Times	Not less than 100
8		Breaking no-load transformer capacity	kVA	1250
9		Rated thermal stability current	kA/s	20/4;
				Ground switch 20/2
10		Rated dynamic stability current (peak value)	kA	50
11		Rated short-circuit making current (peak value)		50
12	combination	Fuse rated current	A	100
13	Electrical appliances	Rated transfer current		1500	2000
14		Rated short-circuit breaking current	kA	31.5
15		Equipped with fuse model		SQLAJ-12(XRNTa-10)
16	Mechanical life		Times	2000	10000
17	Auxiliary circuit 1min power frequency withstand voltage		kV	2
18	Working voltage of electric operating mechanism		V	Ac/dc 220;110
19	Protection level			IP2X

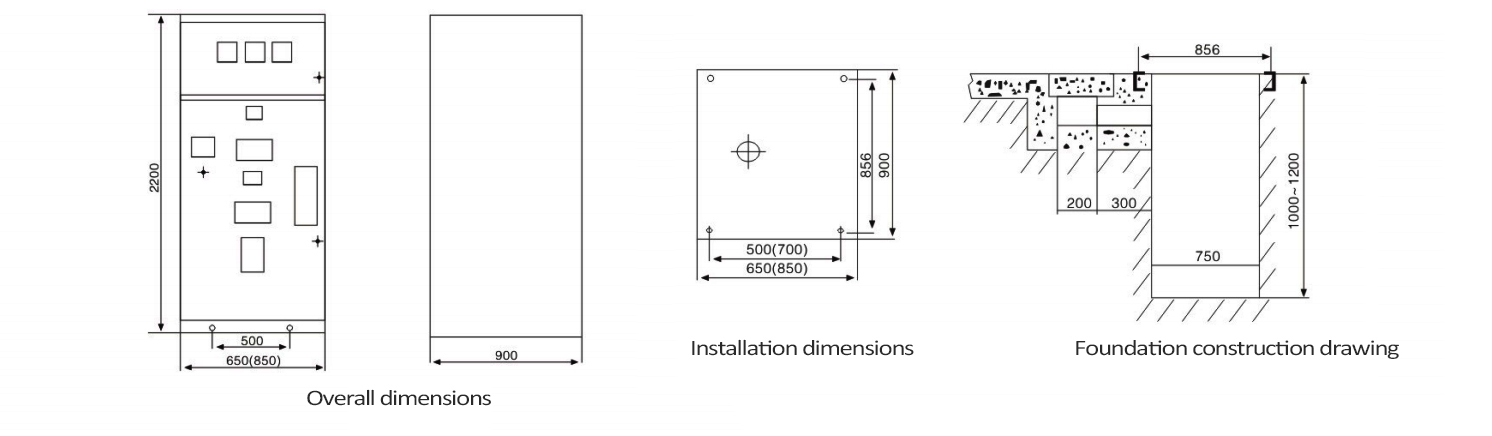

20	Dimensions (width x depth x height)		mm	650(850)x900x2000(2200)

4.WORKING CONDITION

1.Working environment temperature: upper limit +40℃, lower limit: -25℃.
2.The altitude of the use site shall not exceed 2000m.
3.air relative humidity: daily average is not more than 95%, monthly average is not more than 90%.
4. the surrounding air is not corrosion or combustible gas, water vapor and other obvious pollution.
5. no frequent violent vibration.
