KYN28A-12 Compact MV 36KV Switchgear
KYN28A-12 type armored removable AC metal-enclosed switchgear (hereinafter referred to as "switchgear") is suitable for three-phase AC 50Hz power system for receiving and distributing power and controlling, protecting and monitoring of the circuit in real time. The newly introduced and developed large current and high breaking switchgear can also be used as a high-voltage generator export. The product is in line with GB3906 "3-35kV AC metal enclosed switchgear", GB/T11022 "common technical requirements of high-voltage switchgear and control equipment standard", IEC62271 "AC metal-enclosed switchgear and control equipment with rated voltage 1kV above 52kV and below".
Descripción

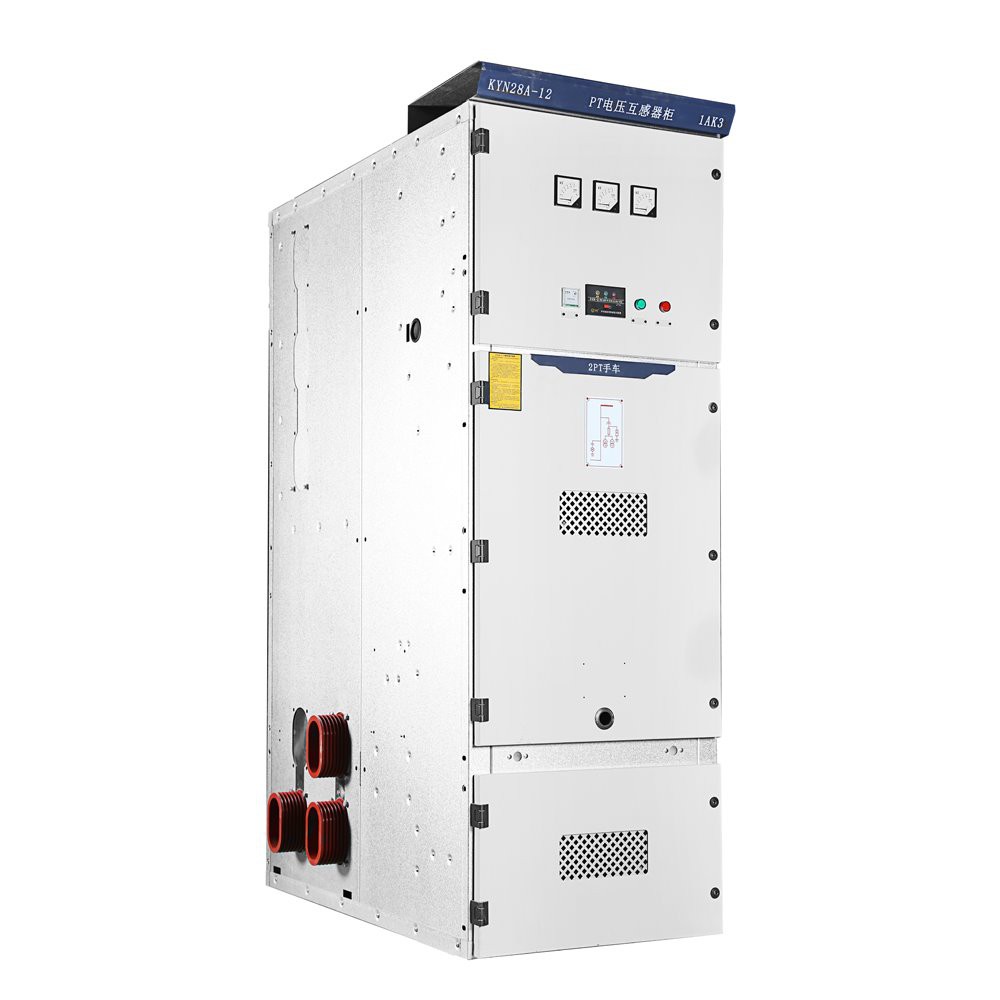

KYN28A-12 compact MV 36KV switchgear
The KYN 28-12 AC metal-clad indoor withdrawable switchgear (3.6 - 12 kV, 3-phase, AC, 50Hz) produced by our company It is a power transmission and distribution device for accepting and distributing electric power in the sectionalized single-bus system, which is mainly used for accepting electric power of small and medium-sized generators, power distribution of industrial and mining enterprises, accepting and transmitting electric power for secondary substations. starting of large-sized HV motors and used in. power plants, its functions are for control, protection, and monitoring.
air composite insulation
VCB withdrawable
Four compartments (VCB, busbar, cable terminal and LV)
Interlocking system
Wall mounted or back to back installation
Internal arc classified IAC AFLR (arc duct)
Motor operation for withdrawable VCB and earthing switch
Power automation system (optional)
THE USE OF CONDITIONS
1. Ambient air temperature: -15°C-+40P; 2. Humidity conditions:Daily average relative humidity: W95%, daily average steam pressure does not exceed 2.2kPa: Monthly average relative humidity: W90%, monthly average vapor pressure does not exceed 1.8kPao 3. Altitude: 4000m and below. 4. Earthquake intensity: no more than 8 degrees. 5. The surrounding air should be free from corrosive or flammable gas, water vapor and other obvious pollution. 6. There is no frequent violent vibration place. 7. When used in excess of the normal conditions specified in GB3906, it shall be negotiated by the user and the manufacturer.
FACTORY
CERTIFICATE
EXHIBITION
COMPANY OVERVIEW
PACKING&DELIVERY
FAQ
Q5 : Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.
Q7 : Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity or package
Q8 : How about inspection?
A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.
Q9 : What is payment terms?
A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
